AMETEK Floorcare & Speciality Motors´Â 7°³ÀÇ ´Ù¸¥ Á¦Á¶ À§Ä¡¿¡¼­ ±¸µ¿¸ðÅÍ, Áø°ø¸ðÅÍ, ¸¶ÀÌÅ©·Î ¾ÐÃà±â, ±â¾î¸ðÅÍ µî ±¤¹üÀ§ÇÑ ¸ðÅÍ Á¦Ç°±ºÀ» »ý»êÇÏ´Â ±Û·Î¹ú Á¦Á¶¾÷üÀÔ´Ï´Ù.
ÁÖ¿ä »ç¿ëó´Â HVLP, À¯¾Ð Powerpack, Àܵð ¹× Á¤¿ø, ÀÚÀç Ãë±Þ, ÀÇÈ¿Àåºñ, ½ºÆÄ, Ç¥¸éó¸®, °¡Á¤¿ë ¹Ù´ÚÀçÀÔ´Ï´Ù.
AMETEK´Â 500WÀÇ Ãâ·Â¿¡¼­ 2000W ÀÌ»ó ¼ö¹é°¡Áö Á¾·ù°¡ »ý»êµÇ¾î ¹Ù´Ú Äɾî½ÃÀåÀ» À§ÇÑ °¡Àå ¿Ïº®ÇÑ ¸ðÅÍ Á¦Ç°±ºÀ» ¼³°èÇÏ°í Á¦Á¶ÇÕ´Ï´Ù. ¸ðÅÍ Ç÷§ÆûÀº ÀüÅëÀû ¶Ç´Â °í¼ÓÀÇ Åë À¯·® ¶Ç´Â ½À½Ä ¹× °Ç½Ä, ƯÁ¤ °í°´ ¿ä±¸ »çÇ×À» ÃæÁ·Çϵµ·Ï ¼³°èµÈ ÇϳªÀÇ ÆÒ ¶Ç´Â ´ÙÁß ÆÒ ½Ã½ºÅÛÀÏ ¼ö ÀÖ½À´Ï´Ù.
Çõ½ÅÀûÀÎ ±â¼ú°ú ÃÖ°íÀÇ ºñ¿ë Àü·«À» ÅëÇØ AMETEK´Â °¡Á¤¿ë, »ó¾÷¿ë, »ê¾÷¿ë ¹× Àü¹® Áø°ø û¼Ò±â ÀÀ¿ë ÇÁ·Î±×·¥ »Ó¸¸ ¾Æ´Ï¶ó µå¶óÀÌºê ¶Ç´Â °ø±â À̵¿°ú °ü·ÃµÈ Ư¼ö ÀÀ¿ë ÇÁ·Î±×·¥¿¡ °¡Àå È¿°úÀûÀÎ ¼Ö·ç¼ÇÀ» Á¦°øÇÒ ¼ö ÀÖ½À´Ï´Ù.

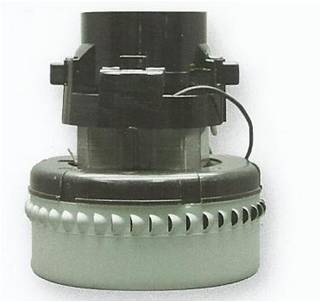

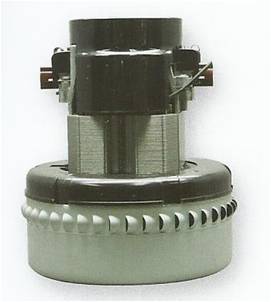

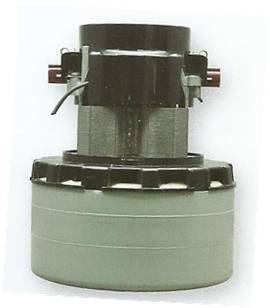

     º£Å¨ ºí·Î¾î ¸ðÅÍ: Peripheral Bypass Blower Motor
Motor Code 122325-00

  * À̹ÌÁö¸¦ Ŭ¸¯Çϸé Å©°Ô º¼ ¼ö ÀÖ½À´Ï´Ù.
  Typical Performance
Fan Diameter 4.2" Speed 33200 Rpm
Stage 1-STG Maximum Output Power 236 W
Insulation UL Class A Maximum Vacuum Pressure 16.39 KPa
Voltage 230V, 50Hz Maximum Air Flow 2.453 m©ø/min
Input Power 817 W Maximum Efficiency 29.8 %


Motor Code 122255-00

  Typical Performance
Fan Diameter 4.2" Speed 26700 Rpm
Stage 1-STG Maximum Output Power 123 W
Insulation UL Class A Maximum Vacuum Pressure 10.21 KPa
Voltage 220V, 50Hz Maximum Air Flow 2.059 m©ø/min
Input Power 450 W Maximum Efficiency 29 %


Motor Code 122007-00

  Typical Performance
Fan Diameter 5.1" Speed 25270 Rpm
Stage 1-STG Maximum Output Power 221 W
Insulation UL Class A Maximum Vacuum Pressure 15.89 KPa
Voltage 230V, 50Hz Maximum Air Flow 2.496 m©ø/min
Input Power 770 W Maximum Efficiency 29.4 %


Motor Code 122363-00

  Typical Performance
Fan Diameter 4.5" Speed 32480 Rpm
Stage 1-STG Maximum Output Power 233 W
Insulation UL Class A Maximum Vacuum Pressure 17.01 KPa
Voltage 120V, 60Hz Maximum Air Flow 2.750 m©ø/min
Input Power 690 W Maximum Efficiency 33.8 %


Motor Code E-14861-2B

  Typical Performance
Fan Diameter 5.4" Speed 30400 Rpm
Stage 1-STG Maximum Output Power 225 W
Insulation IEC Class B Maximum Vacuum Pressure 19.93 KPa
Voltage 240V, 50Hz Maximum Air Flow 2.087 m©ø/min
Input Power 1200 W Maximum Efficiency 20 %


Motor Code 119573-02

  Typical Performance
Fan Diameter 5.7" Speed 24870 Rpm
Stage 1-STG Maximum Output Power 379 W
Insulation UL Class A Maximum Vacuum Pressure 19.08 KPa
Voltage 240V, 50Hz Maximum Air Flow 3.618 m©ø/min
Input Power 1180 W Maximum Efficiency 30.9 %


Motor Code E-16056-2C

  Typical Performance
Fan Diameter 5.7" Speed 25000 Rpm
Stage 1-STG Maximum Output Power 323 W
Insulation UL Class A Maximum Vacuum Pressure 19.18 KPa
Voltage 240V, 50Hz Maximum Air Flow 3.440 m©ø/min
Input Power 1046 W Maximum Efficiency 31 %


Motor Code 119656-00

  Typical Performance
Fan Diameter 5.7" Speed 19510 Rpm
Stage 2-STG Maximum Output Power 345 W
Insulation UL Class A Maximum Vacuum Pressure 25.01 KPa
Voltage 240V, 50Hz Maximum Air Flow 3.009 m©ø/min
Input Power 1120 W Maximum Efficiency 30.2 %


Motor Code 119816-00

  Typical Performance
Fan Diameter 5.7" Speed 19290 Rpm
Stage 2-STG Maximum Output Power 338 W
Insulation UL Class A Maximum Vacuum Pressure 24.89 KPa
Voltage 230V, 50Hz Maximum Air Flow 2.879 m©ø/min
Input Power 1101 W Maximum Efficiency 30.9 %


Motor Code 122100-07

  Typical Performance
Fan Diameter 5.7" Speed 22300 Rpm
Stage 2-STG Maximum Output Power 434 W
Insulation UL Class A Maximum Vacuum Pressure 29.64 KPa
Voltage 240V, 60Hz Maximum Air Flow 3.277 m©ø/min
Input Power 1482 W Maximum Efficiency 30.0 %


Motor Code 122320-00

  Typical Performance
Fan Diameter 5.7" Speed 18370 Rpm
Stage 2-STG Maximum Output Power 334 W
Insulation UL Class A Maximum Vacuum Pressure 22.74 KPa
Voltage 240V, 50Hz Maximum Air Flow 3.173 m©ø/min
Input Power 1030 W Maximum Efficiency 31.2 %


Motor Code 122326-00

  Typical Performance
Fan Diameter 5.7" Speed 21330 Rpm
Stage 2-STG Maximum Output Power 438 W
Insulation UL Class A Maximum Vacuum Pressure 28.57 KPa
Voltage 240V, 60Hz Maximum Air Flow 3.243 m©ø/min
Input Power 1423 W Maximum Efficiency 30.9 %


Motor Code 122340-18

  Typical Performance
Fan Diameter 5.7" Speed 14050 Rpm
Stage 2-STG Maximum Output Power 129 W
Insulation UL Class A Maximum Vacuum Pressure 13.80 KPa
Voltage 240V, 50Hz Maximum Air Flow 2.140 m©ø/min
Input Power 441 W Maximum Efficiency 29.7 %


Motor Code 119877-07

  Typical Performance
Fan Diameter 5.7" Speed 24000 Rpm
Stage 2-STG Maximum Output Power 592 W
Insulation UL Class A Maximum Vacuum Pressure 34.38 KPa
Voltage 230V, 60Hz Maximum Air Flow 3.610 m©ø/min
Input Power 1650 W Maximum Efficiency 36 %


Motor Code 122411-18

  Typical Performance
Fan Diameter 5.7" Speed 20000 Rpm
Stage 2-STG Maximum Output Power 350 W
Insulation UL Class A Maximum Vacuum Pressure 23.42 KPa
Voltage 240V, 60Hz Maximum Air Flow 2.876 m©ø/min
Input Power 900 W Maximum Efficiency 35 %


Motor Code 122468-13

  Typical Performance
Fan Diameter 5.7" Speed 17895 Rpm
Stage 3-STG Maximum Output Power 366 W
Insulation UL Class A Maximum Vacuum Pressure 30.49 KPa
Voltage 220V, 50Hz Maximum Air Flow 2.687 m©ø/min
Input Power 1220 W Maximum Efficiency 30.3 %
